Picture of the original Victor Reader Stream eBook player, model 303, front view, horizontal.

AC Adapter Specs for Victor Reader Stream 303

The AC adapter shipped with the original Victor Reader Stream model 303 player is a five volt switching supply. It comes with a male barrel style power plug on one end of a thick, six foot, non detachable cord.  The US version sports a standard 120v AC two prong, non polarized plug, with non retractable prongs. Shown in the next picture. In this piece we cover these AC adapter specs for the Victor Reader Stream 303 eBook player.

Picture of the BI 13-050200-BDU AC power adapter, side view.
BI 13-050200-BDU AC adapter, side view.




AC Adapter Specs for Victor Reader Stream Model 303

Input

This lightweight BI brand switching power supply, model BI13-050200-BdU, accepts 50-60 Hz. 100-240 volts, 50/60 Hertz, at 0.5 amps.

Output

It outputs 5.0 volts DC at 2 amps max.  This is 10 watts, to the male DC power jack at the other end of the cable.  Polarity is positive center, negative outer sleeve.  See this printed on the supply label, shown next.

Picture of the BI model 13-050200-BDU AC power adapter, showing its label side.
BI model 13-050200-BDU AC adapter, showing its label side.

The attached cable matches the black case on the adapter. It has a thin male DC output plug. This plug inserts into the female power jack on the Stream, as shown above.

This AC adapter has no pilot lamp to show that it’s running.  Further, it can whistle and chatter a bit. But you barely hear these sounds, though you can hear them when all else is quiet.

Picture of the BI 13-050200-BDU AC power adapter, displaying its DC output connector, against a ruler.
BI 13-050200-BDU AC  adapter, displaying its DC output connector, against a ruler.

The business part of the DC output jack plugs into the Victor Reader Stream.  It is about 9 mm long as shown in the last picture. It is roughly 4 mm wide, as shown in the next picture.

Picture of the BI Model 13-05020-0BDU AC power adapter DC output connector. showing its width against a ruler.
BI Model 13-05020-0BDU AC adapter DC output connector. showing its width against a ruler.




The model 303 Stream sports a DC power port, where you connect the AC adapter.  The port is on its top, as shown next, pointed at by the blue arrow.

Picture of the Victor Reader Stream model 303 eBook player, top view, showing its DC power port highlighted.
Victor Reader Stream model 303 eBook player, top view, showing its DC power port highlighted.

The AC adapter plugs into the top of the Victor Reader Stream, as shown next.

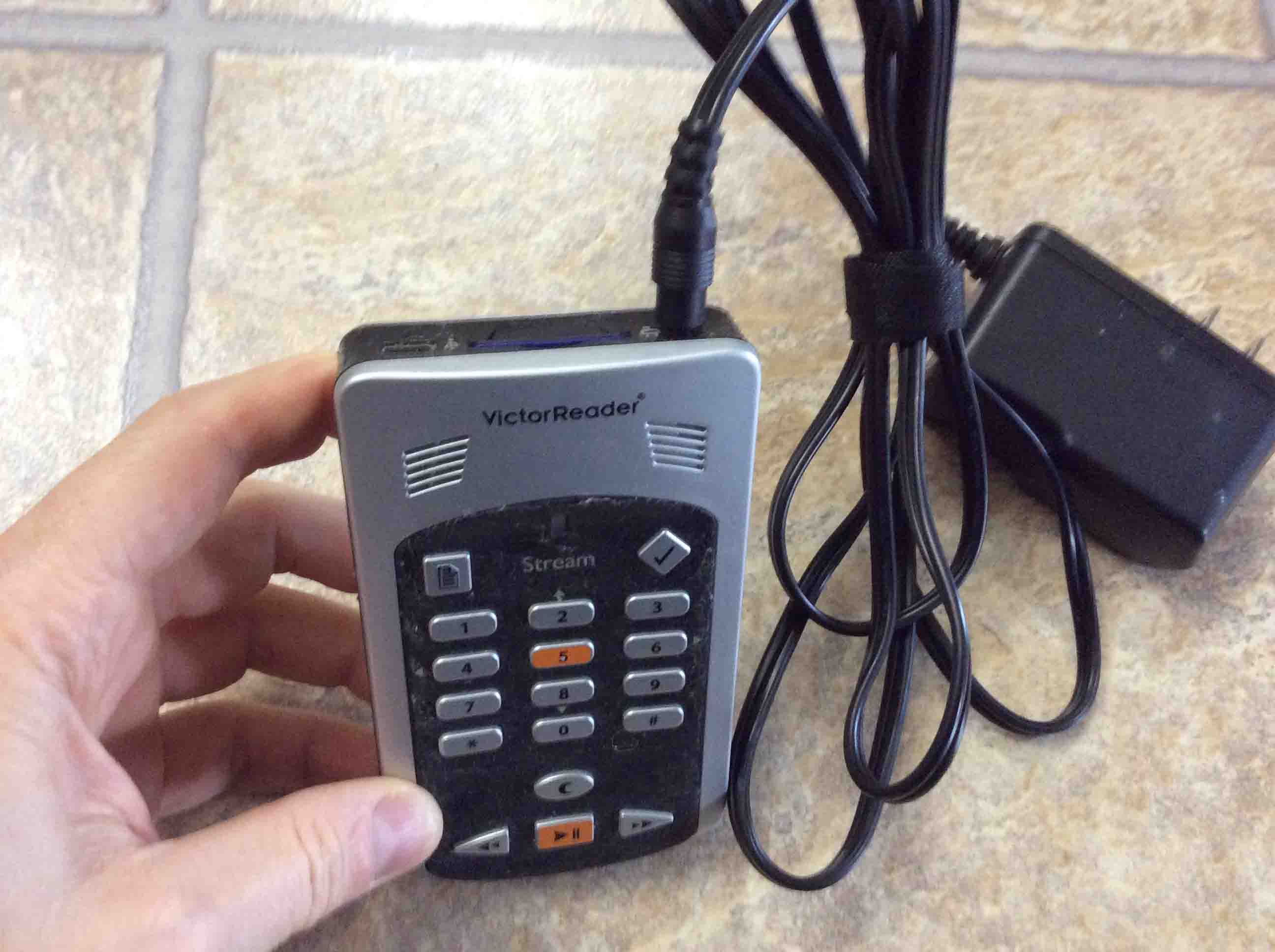

Victor Reader Stream model 303 eBook player, top view, showing the included AC power adapter connected to the stream.
Victor Reader Stream model 303 eBook player, top view, showing the included AC adapter connected to the stream.

Related Posts to AC Adapter Specs for Victor Reader Stream 303

  1. Victor Reader Stream 303 eBook Reader Review
  2. HumanWare Victor Reader Trek GPS Navigator and DAISY Book Player Picture Gallery
  3. Google Home Mini Power Adapter Specs
  4. Victor Reader Stream New Generation Daisy Player, Podcatcher, Internet Radio Review
  5. Solving WiFi Connect Problems, Victor Reader Stream, New Generation
  6. Victor Reader Stream First Generation Gripes

Suggested Reading

  1. 12 Volt Power Adapter Failure on External Hard Drive

References for AC Adapter Specs for Victor Reader Stream 303

  1. Humanware   Web Site
  2. User’s Manual

Revision History

  • 2019-04-07: Added key phrase targeting and removed ad code.
  • 2018-02-01: Originally published.
